MF-Ⅱ FILTER

FOR PRINT ※ CATALOG:download(PDF)

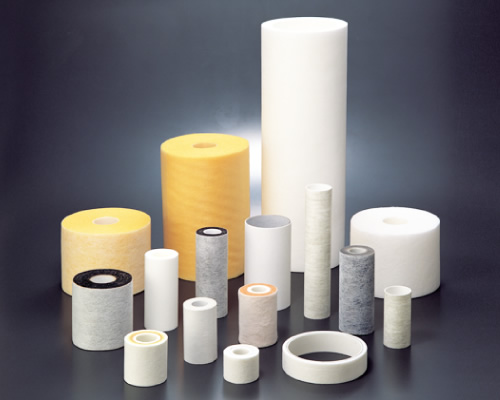

MF-Ⅱ FILTER

High filtration clarity filter which has high clarity and long life

It is a cylindrical shape filter element of the three-dimensional reticulation structure which is made from thermal bonded polyolefin with other functional fiber. It can be constructed with Ion exchange fiber sheet, Activated carbon fiber sheet, Glass fiber sheet, Membrane sheet and other functional fiber on surface, inner or middle of the filter element. Filtration layer is an asymmetric structure which has the density gradient for outer to inner(out→in) or inner to outer(in→out) of filter. Filtration rate can be large since pressure drop is small with reticulation structure, high porosity, excellent resistance to chemicals and high mechanical strength.

High quality filter which has high clarity and long life

FEATURE OF FILTER

FEATURE1
The filtration layer is an asymmetric structure from outer to inner
and the filter has the density gradient, and improvement of
filtration clarity so it can catch more cake.(out→in type)
FEATURE2
The filtration layer is an asymmetric structure from inner to outer
and the filter has the density gradient, and improvement of
filtration clarity so it can catch more cake.(in→out type)
FEATURE3
We can put the particular function to the filter by constructing it by putting functional non-woven fabric or filter paper
SPECIAL PROPERTY ※ DATA:download(PDF)

USAGE・SPECIFICATIONS

USAGE
Filter for liquid (adsorption - filtration)
Filter for high pressure air
Filter for softeners and purifiers
Filter for paints
Filter for exhaust purification
Muffling material
Pre-filter of pure water process
Oil mist separator
SPECIFICATIONS
Inner diameter:5mmΦ~200mmΦ
Outer diameter:8mmΦ~215mmΦ
Thickness:1.5mm~80mm
Length:6mm~580mm
(It is available up to 1,000mm according to the product.)
※Since it is 100% custom-made, please let us know your favor for diameter, thickness, filtration clarity and type of material

It can be constructed with functional fiber on surface, inside or middle of filter element. We are always trying process its self or types of curling machine for special processed goods.

Technology of us!
pr2_photo01

Filter for gass-checking

pr2_photo01

Filter for exhaust of
vacuum pumps

pr2_photo01

Parts for activated carbon filter
on water purifier
