MMF FILTER

High quality filter which has high clarity and long life
(All-Japanese product)

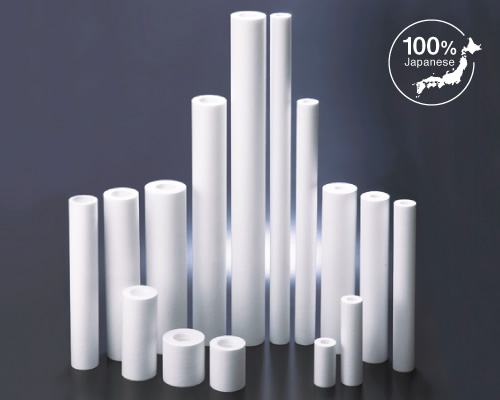

It is a filter element which is made from thermal bonded ultrafine polypropylene fiber. It has excellent resistance to chemicals and capability of microfiltration, although it has longer filter life since filtration rate can be large because pressure loss is small with continuous density gradient for outer to inner.
As it is build to order system, we will make specific size of filter which customer request. Although it is the product 100% made in Japan from 100% Japanese polypropylene material, so customer can rely on the quality.

High quality filter which has high accuracy and long life(All-Japanese product)

FEATURE OF FILTER

FEATURE1
It is the latest filter element which is made from
thermal bonded ultrafine polypropylene fiber.
FEATURE2
Excellent chemical resistance since material is 100% polypropylene,
and it is applicable to use for wide range of liquid filtration
because of the extraction from filter element is very few.
FEATURE3
Filtration flow rate is large with even low pressure
since resistance for water or air is small
because filter element has continuous density gradient.
FEATURE4
We can produce conventional size of cartridge and also the required
size of filter as customer requested in reasonable price.
FEATURE5
It is the product 100% made in Japan from 100% Japanese polypropylene
material, also made in Japan. so customer can rely on the quality.
SPECIAL PROPERTY ※ DATA:download(PDF)

USAGE・SPECIFICATIONS

USAGE
Industrial water, rinse water,
  drainage
Abrasion liquid, cutting fluid, paint
Acid, alkaline solution
Water of bath tub or swimming pool
Chemicals
Food stuffs
Plating liquid
Others
SPECIFICATIONS(MAX)
Inner diameter:
 [1]28mmΦ [2]60mmΦ
Outer diameter:
 [1]48mmΦ〜120mmΦ
 [2]80mmΦ〜120mmΦ
Thickness:
 [1]10mm〜46mm
 [2]10mm〜30mm
Length:125mm~1,500mm
Filtration clarity:1,5,10μm (nominal)
※Please consult inner, outer diameter

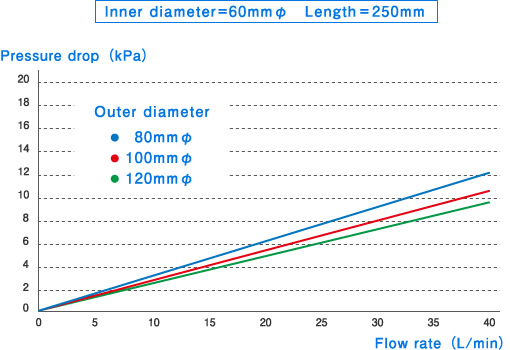

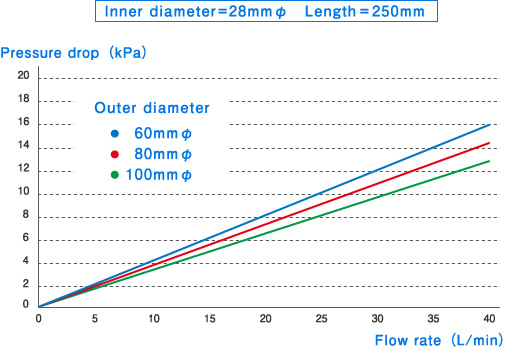

FLOW RATE CHARACTERISTIC DIAGRAM

Pressurp drop (kPa) Pressurp drop (kPa)

RESISTANCE TO CHEMICALS

CHEMICALS   COMPATIBLITY
10% hydrochloric acid.
10% nitric acid.
10% sulfuric acid
10% sodium hydroxide
10% sodium carbonate (Na2CO3)
1% sodium hypochlorite
100% ethyl alcohol
toluene
formalin
copper sulfate plating liquid
100% Olive oil
kerosin
soybean oil

※Chemical resistance could be influenced depends on liquid temperature, filtration pressure and filtration time. We recommend to executed the test of chemical resistance before actual use.
